Scan-based component integration

Suzuki GSX-R 600 Custom Headlight Cover

A custom inner bezel designed from scan data to conceal exposed wiring and modified lighting components behind the transparent headlight lens.

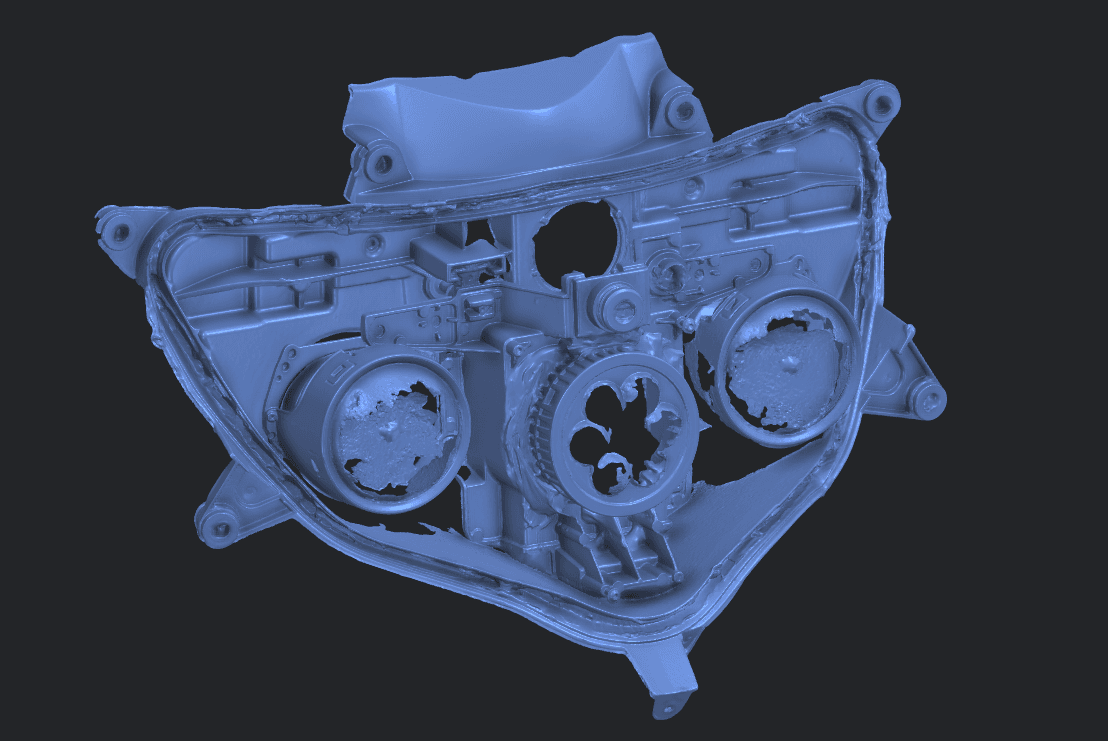

Blue 3D scan of a modified Suzuki GSX-R 600 headlight assembly — Client-supplied scan showing the modified headlight and complex internal layout.

Custom green headlight bezel fitted to the Suzuki GSX-R 600 scan — Front fitment check with all three light openings preserved.

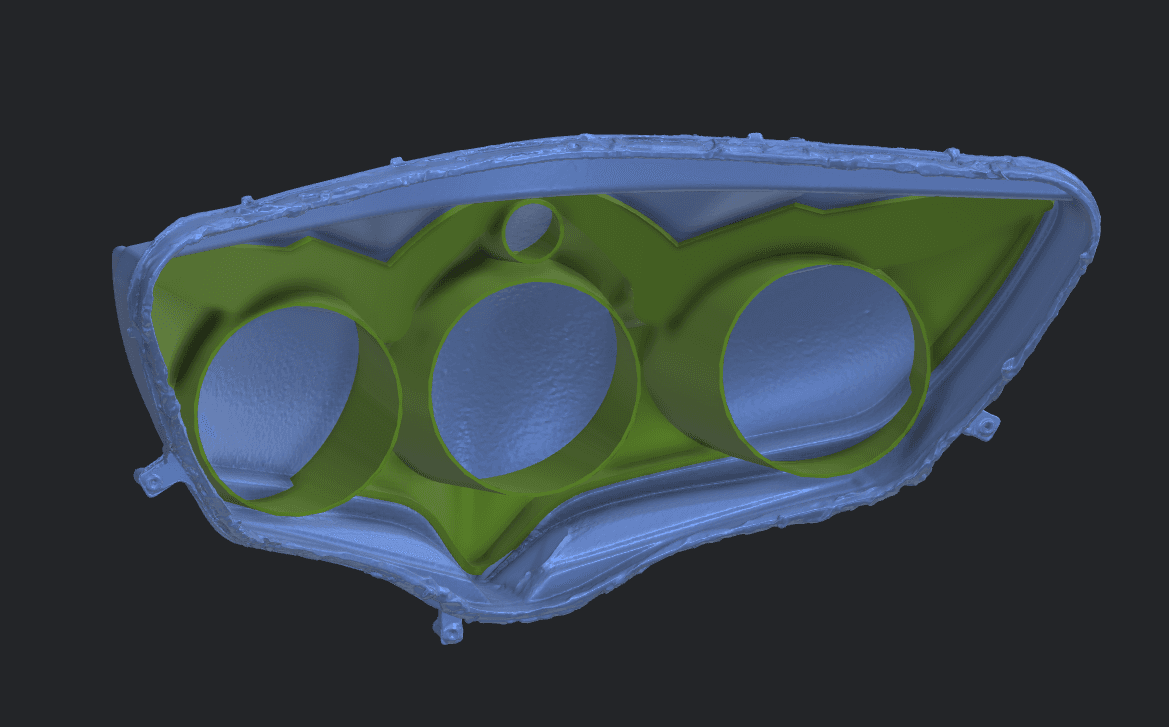

Rear view of custom Suzuki GSX-R 600 headlight cover fitted inside scanned housing — Rear view used to confirm the cover follows the housing and clears internal geometry.

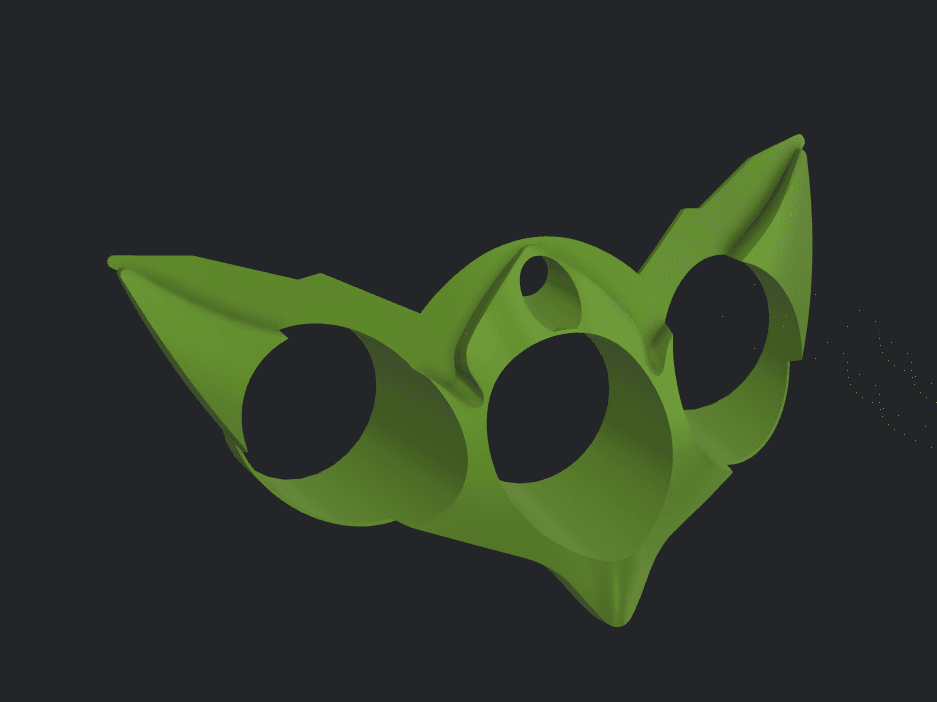

Final standalone Suzuki GSX-R 600 custom headlight cover model — Final clean bezel model prepared from the scan-based fitment design.

The challenge

Design around reality

The modified headlight was functional, but wiring and supporting components remained visible through the transparent outer lens. The new cover had to hide the visual clutter while preserving all three light openings and fitting inside the original housing.

Engineering approach

Used the client-supplied scan of the modified headlight as the design reference.

Built the bezel around the installed lighting geometry rather than the unmodified factory assembly.

Maintained clear openings for all three lights and followed the original housing contours.

Refined the cover as a clean standalone model suitable for manufacture and installation.

Result

A fit-led final design

The final bezel hides the complex wiring and internal components while framing each light and preserving the distinctive shape of the Suzuki headlight.
